FALC-6020-2

Automatic Counting, Grouping and Shrink Packaging Machine

FALC-6020-2 Automatic Counting, Grouping and Shrink Packaging Machine PDF download
FALC-6020-2 Automatic Counting, Grouping and Shrink Packaging Machine

Sleeve-type dual-end sealing packaging method, with a packaging capacity of approximately 5 to 12 packs per minute.

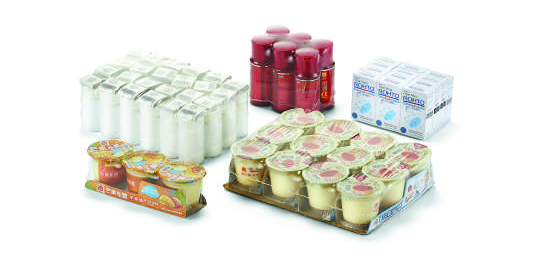

FALC-6020-2 Automatic Counting, Grouping and Shrink Packaging Machine Finished Packaged Product

Features

  • Product size adjustments are easy and operation is simple. The system is fully automated, requiring no skilled personnel, thereby improving production efficiency.
  • Group packaging saves considerable packaging material costs and reduces manpower, lowering production expenses.
  • Perfectly packages square, round, and flat items. The use of this machine eliminates the need for bottom trays in group packaging (automated combination & alignment).
  • Robust machine structure with rust-proof coating, clean lines, and a durable, attractive design.
  • Breaks from tradition with a mech-electrical integrated design to enhance productivity. Ideal for use with computer program operation or PLC-controlled production lines.
  • Packaging Materials:
    Suitable for PE, PVC, and OPP films.
  • Applicable Examples:
    Glass bottles, plastic bottles, aluminum cans, tin cans, carton boxes, hardware products, and more.
  • Equipped with a user-friendly HMI touchscreen interface.
  • Digital temperature controller allows precise adjustment of sealing temperature.

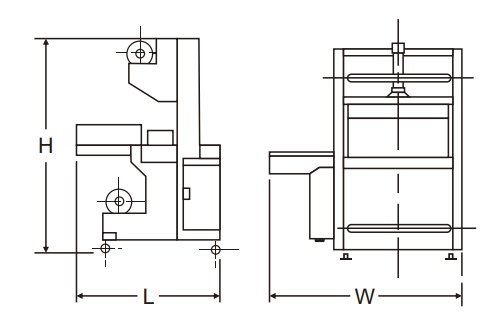

Machine Dimensions

FALC-6020-2 Automatic Counting, Grouping and Shrink Packaging Machine Machine Dimensions

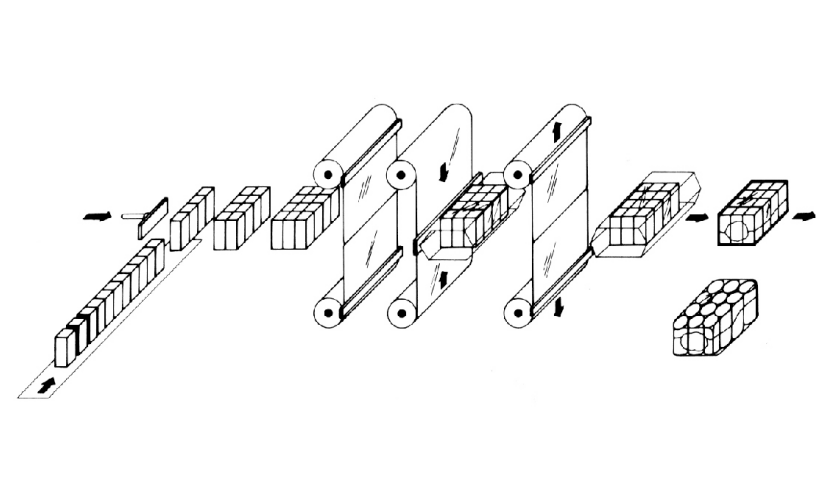

Packaging Flow Chart

FALC-6020-2 Automatic Counting, Grouping and Shrink Packaging Machine Packaging Flow Chart

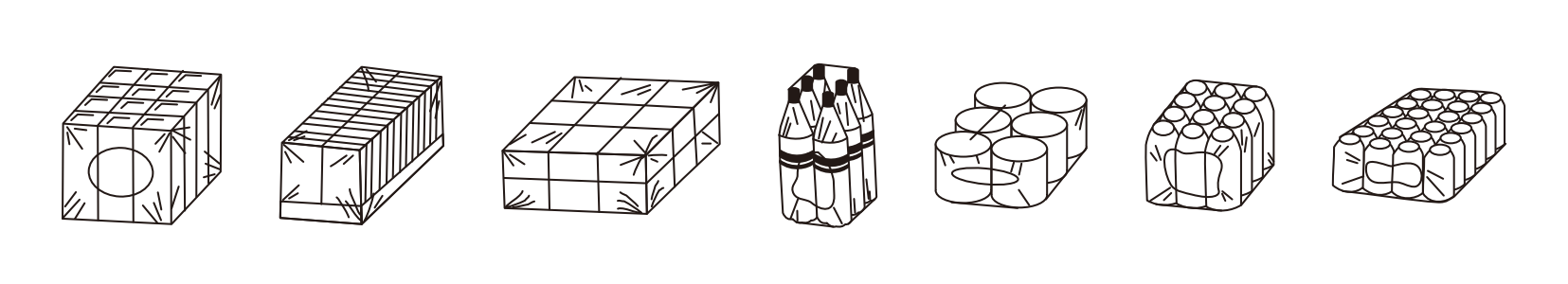

Collective Packaging Diagram

FALC-6020-2 Automatic Counting, Grouping and Shrink Packaging Machine  Collective Packaging Diagram

Machine Specs

FALC-6020-2 Automatic Counting, Grouping and Shrink Packaging Machine Machine Specs

◎ Packaging speed depends on product size, packaging style, and the stability of the product on the conveyor.
◎ Machine dimensions are for reference only; please refer to the actual design.

FM PE Shrink Packaging Machine / Features

  • Digital temperature controller allows precise setting and adjustment of internal tunnel temperature.
  • Preserves product quality, saves energy, and enhances profit margins.
  • The shrink tunnel uses a circulating fan motor for even hot air distribution, with roller-driven conveyors that are durable and speed-adjustable.
  • Rollers are coated with heat-resistant silicone or fiberglass sleeves to prevent film adhesion.

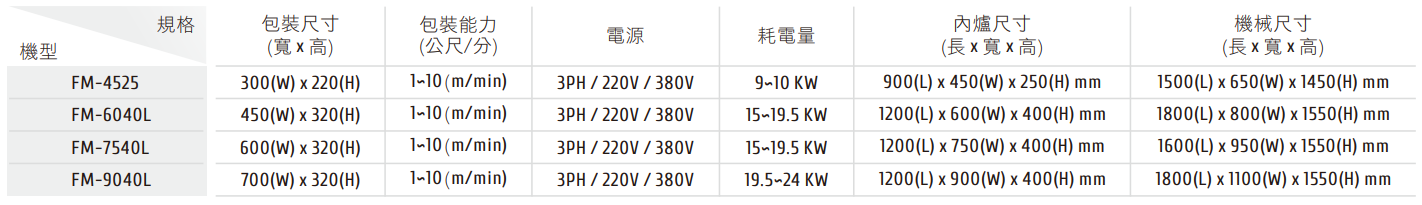

FM PE Shrink Packaging Machine / Specs

FALC-6020-2 Automatic Counting, Grouping and Shrink Packaging Machine ?= ($lang === 'zh') ? 'FM系列 PE收縮包裝機 / 規格表' : 'FM PE Shrink Packaging Machine / Specs'; ?>

◎ If the model number ends with an "L", it indicates the internal oven length is extended by 300mm, resulting in an overall machine length increase of 300mm.
◎ If the model number ends with an "S", it indicates the outlet side plate is extended by 300mm for enhanced cooling, resulting in an overall machine length increase of 300mm.

Machine Video
