FAS-7030-2
Fully Automatic Shallow Tray Shrink Packaging Machine
Sleeve-type two-side sealing packaging method with a packaging capacity of approximately 5–18 packs per minute.
Features
- Packaging Materials:
Compatible with PE, PVC, and OPP films. - Applicable Products:
Gift boxes, shallow trays with aluminum/tin cans or PET bottled beverages, carton-packed products, etc. - Equipped with a user-friendly HMI touch screen for easy operation.
- Digital temperature controller allows for precise sealing temperature adjustment.
- Supports integration with computer-based systems or PLC-controlled production lines.

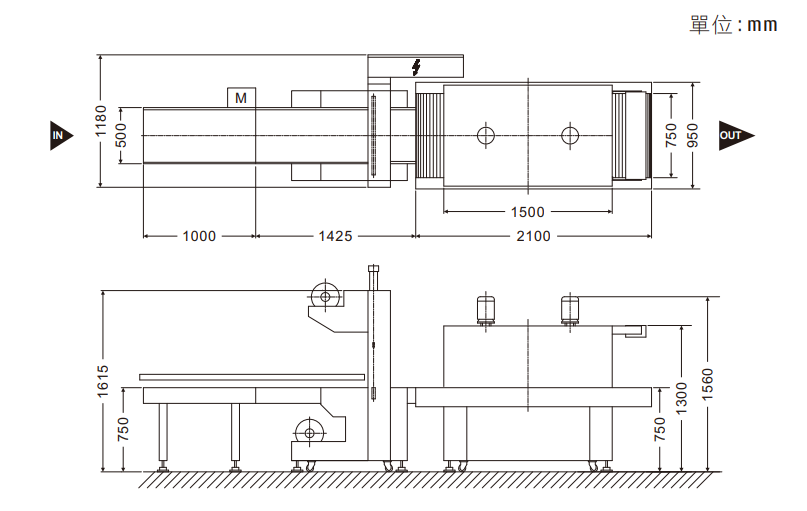

Machine Dimensions

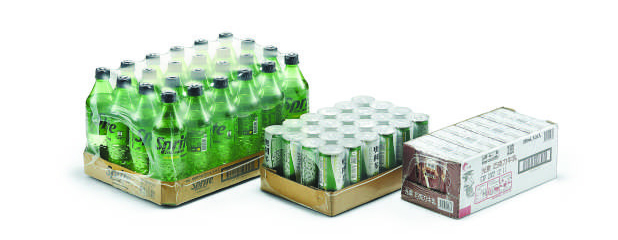

Packaging Method Illustrations

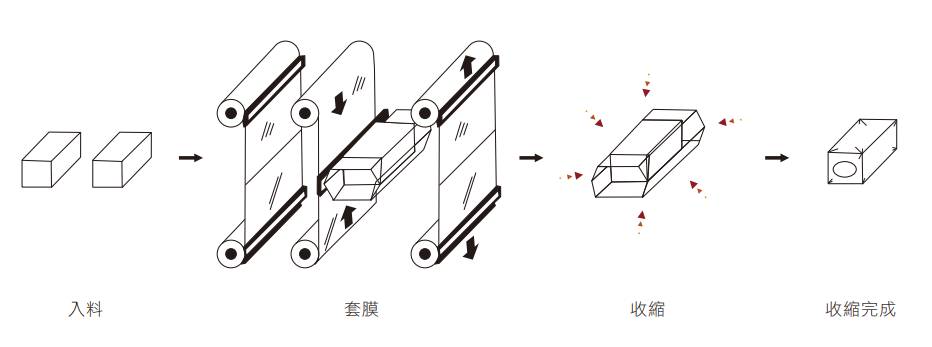

Packaging Flow Chart
Machine Specs
◎ Packaging speed depends on product size, packaging style, and the stability of the product on the conveyor.
◎ Machine dimensions are for reference only; please refer to the actual design.
FM PE Shrink Packaging Machine / Features
- Protects product quality, saves energy, and increases profitability.
- Equipped with a special hot air circulation system and balanced heat radiation. Durable roller conveyor with adjustable speed.
FM PE Shrink Packaging Machine / Specs
◎ If the model number ends with an "L", it indicates the internal oven length is extended by 300mm, resulting in an overall machine length increase of 300mm.
◎ If the model number ends with an "S", it indicates the outlet side plate is extended by 300mm for enhanced cooling, resulting in an overall machine length increase of 300mm.
