FASP-9020-2A

PVC & OPP Tape Counting and Grouping Packaging Machine

FASP-9020-2A PVC & OPP Tapes Accounting-Grouping-Shrink Wrapper PDF download
FASP-9020-2A PVC & OPP Tapes Accounting-Grouping-Shrink Wrapper

Sleeve-type dual-side sealing packaging method with an output capacity of approximately 14–26 packs/min (dual-pack discharge).

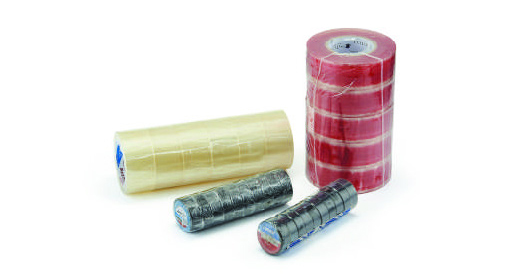

FASP-9020-2A PVC & OPP Tapes Accounting-Grouping-Shrink Wrapper Finished Packaged Product

Features

  • Fully automatic feeding, can be directly connected to slitting machines.
  • Easy mechanical adjustment, suitable for packaging tapes of various sizes.
  • Diverse packaging formats; supports dual-roll quantities such as 6, 8, 10, or 12 rolls.
  • Operated via HMI touch screen, intuitive and user-friendly.
  • Ideal for integration with computer programs or PLC-controlled production lines.
  • Digital temperature controller allows precise sealing temperature settings and adjustments.
  • Packing material uses non-toxic, eco-friendly PE shrink film.
  • Applicable for PVC electrical tape, OPP tape, or other flat/round products such as cans.
  • Speed is compatible with G&A RS240 or other high-speed slitting machines.
  • Product logos face outward for a uniform and appealing presentation.

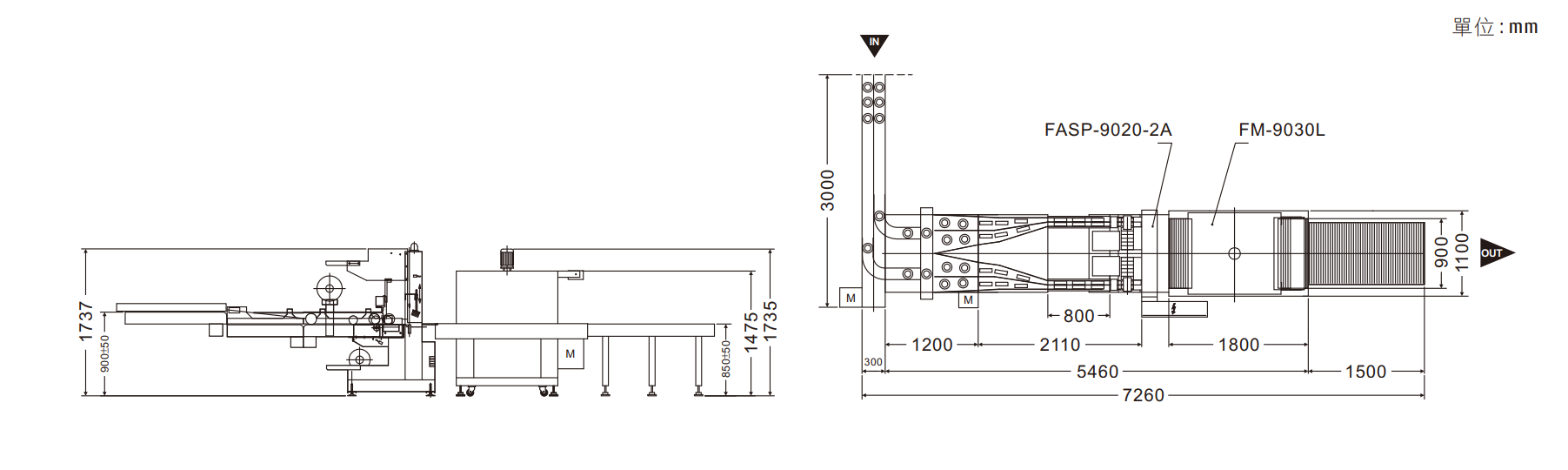

Machine Dimensions

FASP-9020-2A PVC & OPP Tapes Accounting-Grouping-Shrink Wrapper Machine Dimensions

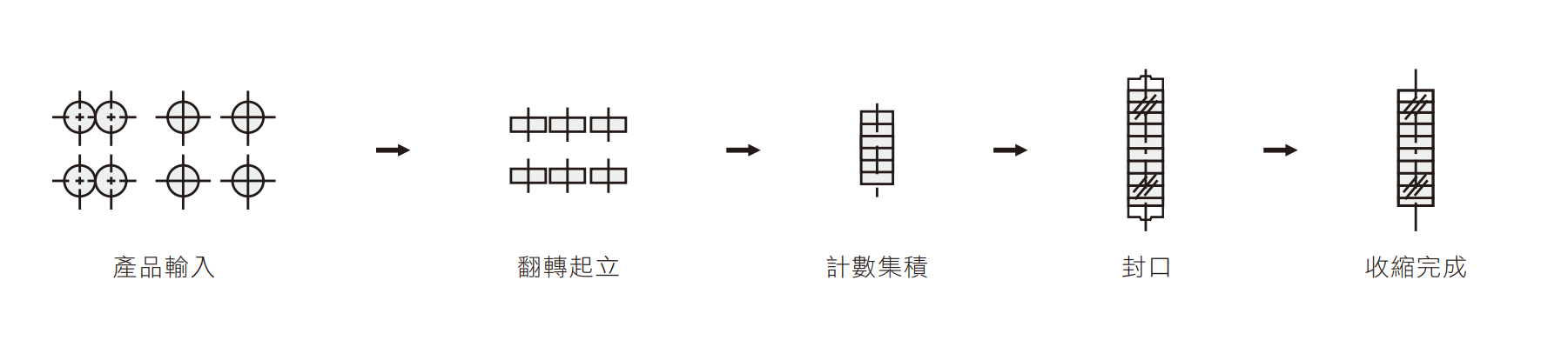

Packaging Flow Chart

FASP-9020-2A PVC & OPP Tapes Accounting-Grouping-Shrink Wrapper Packaging Flow Chart

Machine Specs

FASP-9020-2A PVC & OPP Tapes Accounting-Grouping-Shrink Wrapper Machine Specs

◎ Packaging speed depends on product size, packaging style, and the stability of the product on the conveyor.
◎ Machine dimensions are for reference only; please refer to the actual design.

FM Shrink Machine / Features

  • Digital temperature controller for accurate internal oven heat adjustment.
  • Preserves product quality, saves energy, and increases profit.
  • Shrink tunnel with circulating fan motor provides uniform hot air distribution; roller-driven conveyor offers durability and adjustable speed.
  • Rollers are fitted with heat-resistant silicone rubber or fiberglass sleeves to prevent film adhesion.

FM Shrink Machine / Specs

FASP-9020-2A PVC & OPP Tapes Accounting-Grouping-Shrink Wrapper FM Shrink Machine / Specs

Machine Video
