FY-SSL-K3000

Fully Automatic Shrink Sleeve Labeling Machine

FY-SSL-E200T Automatic Tape Sleeve Labeling Machine PDF download
FY-SSL-E200T Automatic Tape Sleeve Labeling Machine

Production Speed: 600–800 pcs per minute.

Features

  • FY-SSL-K3000 is a fast, efficient, and user-friendly dual-head shrink sleeve system capable of handling most tamper-evident, full-body, middle-body, and total body sleeve applications, including sustainable films.
  • Designed for high-speed operations of up to 600–800 pieces per minute, the new FY-SSL-K3000 accommodates all industry-standard sleeve materials and various container shapes and sizes with ease.
  • The FY-SSL-K3000 features finely tuned specifications, including PLC controls for easy operation, stainless steel/anodized aluminum frame, high-speed capability, and stepper-driven film feed technology.
  • Supports automated sleeving and shrinking for a wide range of containers such as bottles, cans, cup noodles, barrel noodles, and cap-protection sleeves. Tool-free changeovers and brushless cutter holder make operation simple and efficient.

Advance Features

  • Touch Screen
    User-friendly controls minimize setup time.
  • Stainless Steel and Anodized Aluminum Frame
    Built to withstand harsh working environments.
  • Patented Cutting Assembly
    Ensures high productivity and long blade life.
  • Stepper Drive Technology
    Advanced film feeding system for precise positioning.
  • Transparent Safety Doors and Covers
    Full operator protection during labeling process.
  • Wide Product Compatibility
    Supports product widths from 1.0625\" (26.99 mm) to 4.625\" (117.48 mm) for maximum flexibility.
  • Broad Application
    Ideal for tamper-evident, full-body, middle-body, and complete sleeve labeling.

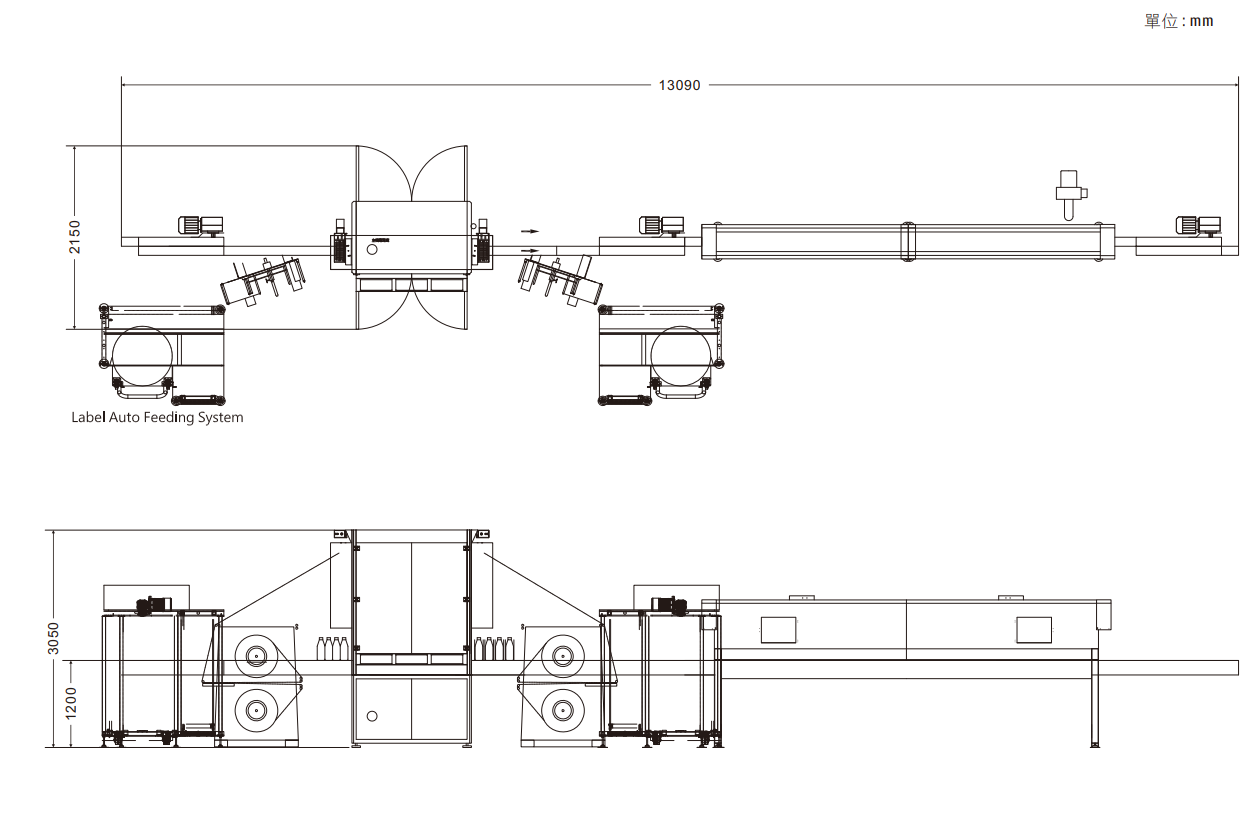

Machine Dimensions

FY-SSL-E200T Automatic Tape Sleeve Labeling Machine Machine Dimensions

Machine Specs

FY-SSL-E200T Automatic Tape Sleeve Labeling Machine Machine Specs

◎ Machine dimensions are for reference only; please refer to the actual design.
