FASP-9020-2S
Accordion-Type Masking Tape Packaging Machine

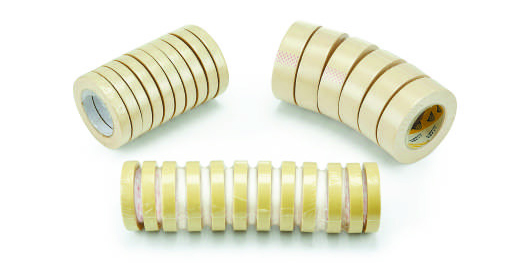

Accordion-style packaging with an output capacity of approximately 8–10 packs/min.
Features
- The FASP series is a dedicated machine specifically designed for tape products. The S-series focuses on accordion-style packaging, also known as spring-style packaging.
- Due to the high stickiness of masking tape, traditional tube-style packaging often causes inconvenience for end users. Accordion packaging has become the mainstream solution, effectively separating individual tapes during the shrink process to eliminate sticking issues.
- To meet the demand for evolving market trends, we also offer models that support wider packaging styles and higher production speeds.
- In addition to standalone operation, we also provide integrated full-line solutions following slitting and rewinding machines, capable of handling automatic feeding, arranging, counting, and packaging—ideal for complete plant automation requirements.
- Operated via HMI touch screen, intuitive and easy to use.
- Digital temperature controller allows for precise sealing temperature adjustment.
- PLC control enhances operational flexibility and allows quick adaptation to changing production conditions.

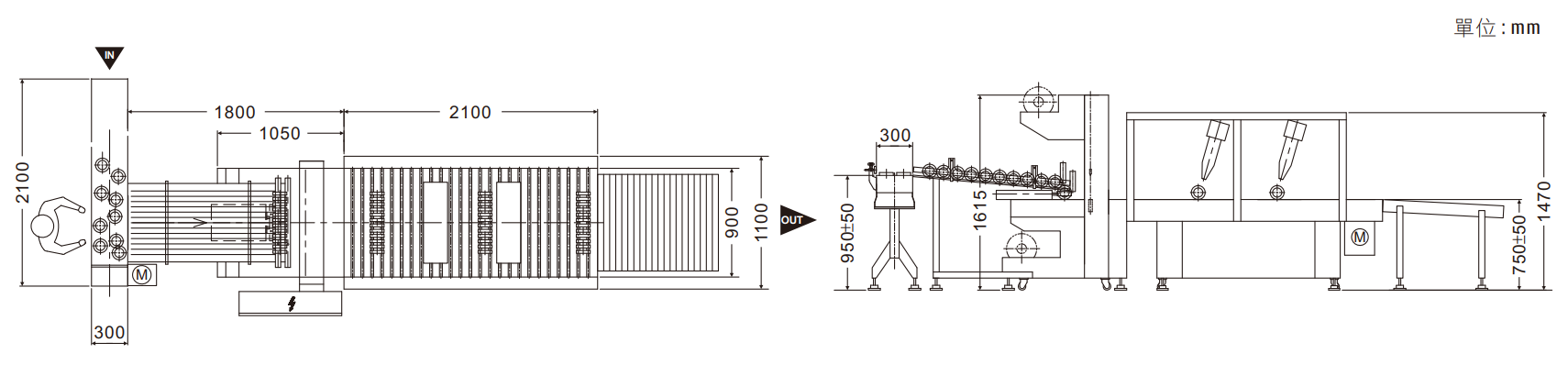

Machine Dimensions

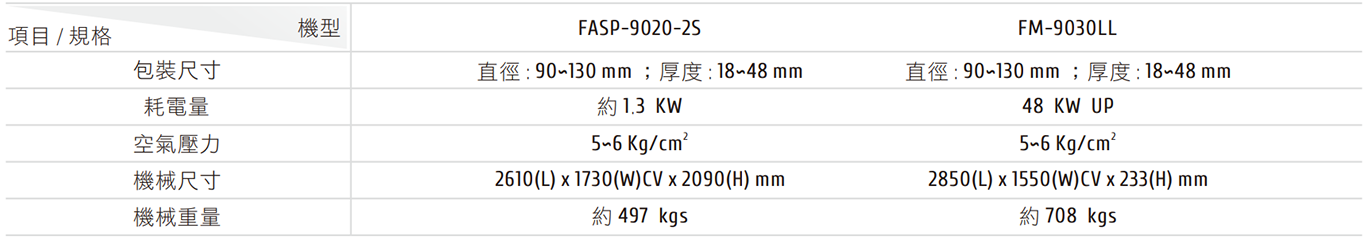

Machine Specs
◎ Machine dimensions are for reference only; please refer to the actual design.
