FYP-260 SERIES

Horizontal Flow Wrapper-Shrinking Type

FYP-260 Series Horizontal Flow Wrapper-Shrinking Type PDF download
FYP-260 Series Horizontal Flow Wrapper-Shrinking Type

This machine model is working with retractable films which allow to obtain a high quality package without folds which adapts film to product shape and dimensions.

Features

  • Twin film reel holders with quick release reel cone.
  • Automatic bag length adjustment from touch screen.
  • Auto stop film run out switch for film breakage or end of the film.
  • Adjustable bag former or fixed bag former [ Folding Box ] depending on product size.
  • Equipped with German Sick Print Registration Photo Cell for reliability and accurate film positioning.
  • Automatic opening / closing of fin seal rollers when the machine stops / starts.
  • Touch screen for easy operator interface and control.
  • Product contact parts are made from stainless steel.

Application

Food industry, medicine medical category, beauty care, metal products, classes and families chemical ...etc.

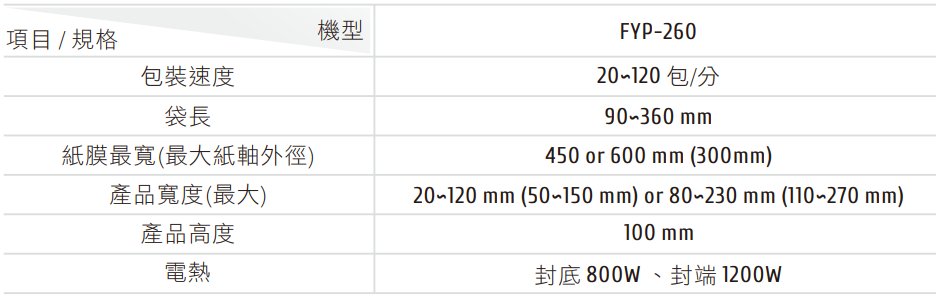

Specification

FYP-260 Series Horizontal Flow Wrapper-Shrinking Type Specification

Video
