FALC-9020-2A

Automatic Multiple Shrink Packaging Machine

FALC-9020-2A Automatic Multiple Shrink Packaging Machine PDF download
FALC-9020-2A Automatic Multiple Shrink Packaging Machine

Sleeve-type dual-end sealing packaging method, with a packaging capacity of approximately 14 to 24 packs per minute (dual-pack output).

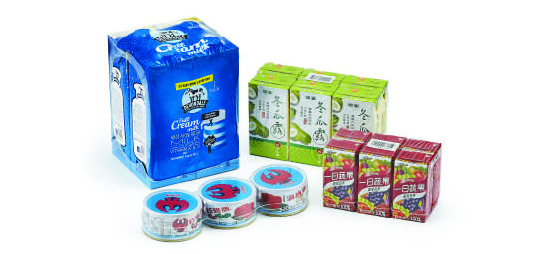

FALC-9020-2A Automatic Multiple Shrink Packaging Machine Finished Packaged Product

Features

  • The machine is made of stainless steel and aluminum alloy components.
  • Quick and easy adjustments for different product specifications.
  • Compatible with 1 x 3 or 2 x 3 packaging formats, ideal for mass-market retail demands.
  • Designed for integration with food production lines, supports computer program operation or PLC control to meet GMP factory standards.
  • Equipped with various detection systems: sealing safety, film absence, jammed feeding, overturned products, heater disconnection, film breakage, or poor sealing detection, with integrated alarm system.
  • Applicable Products:
    Tetra Pak, Combi Pack, boxed products, etc.
  • Features an intuitive HMI touchscreen for easy operation.
  • Digital temperature controller for precise sealing temperature adjustment.

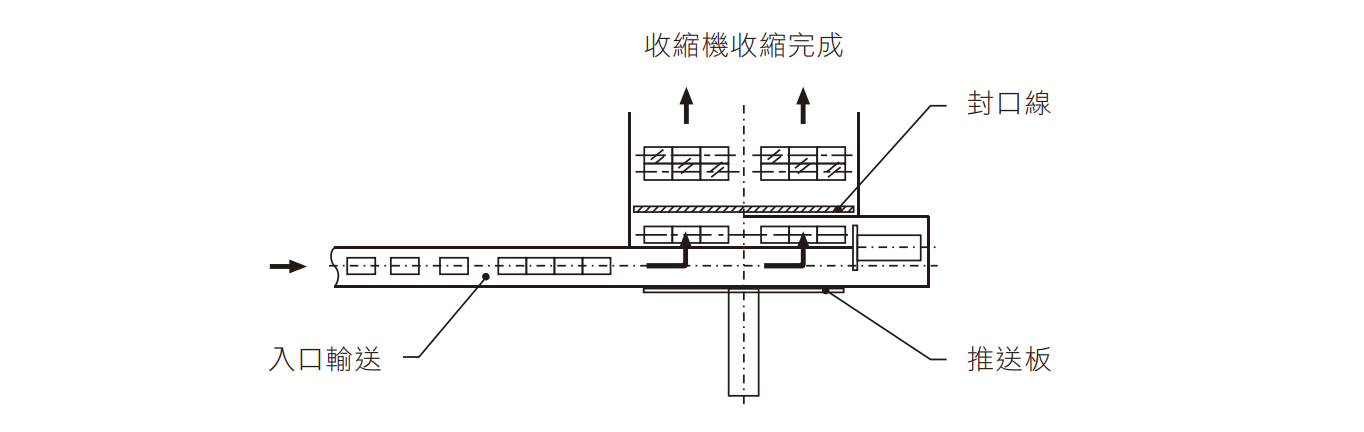

Packaging Flow Chart

FALC-9020-2A Automatic Multiple Shrink Packaging Machine Packaging Flow Chart

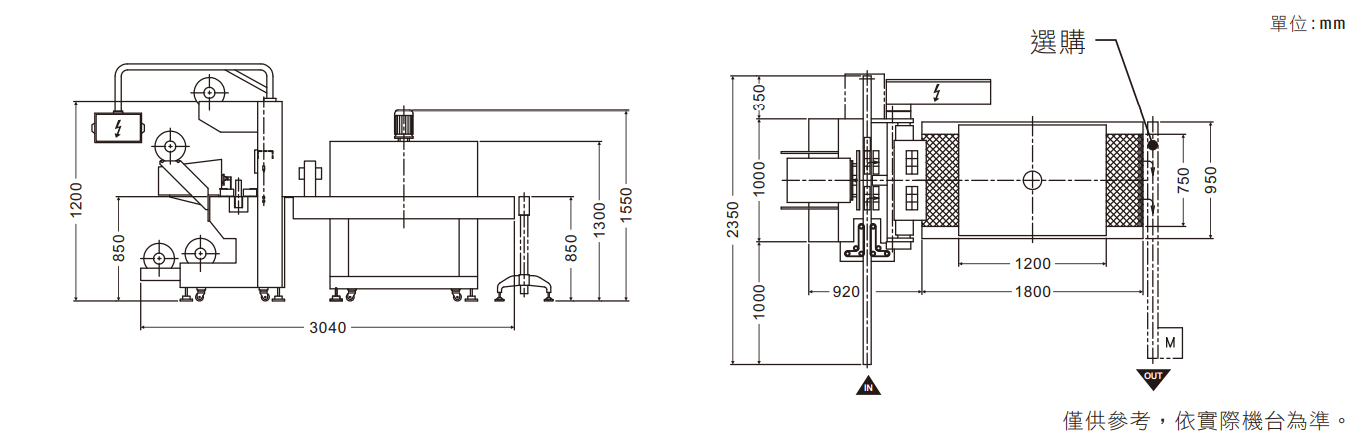

Machine Dimensions

FALC-9020-2A Automatic Multiple Shrink Packaging Machine Machine Dimensions

Machine Specs

FALC-9020-2A Automatic Multiple Shrink Packaging Machine <h1>Machine Specs</h1>

◎ Packaging speed depends on product size, packaging style, and the stability of the product on the conveyor.
◎ Machine dimensions are for reference only; please refer to the actual design.

FM PE Shrink Packaging Machine / Features

  • Digital temperature controller allows for precise setting and adjustment of internal tunnel temperature.
  • Protects product quality, saves energy, and enhances profitability.
  • Shrink tunnel uses circulation fan motors to evenly distribute heat. Roller-driven conveyor system ensures durability with adjustable speed.
  • Rollers are sleeved with heat-resistant silicone rubber or fiberglass tubing to prevent film adhesion.

FM PE Shrink Packaging Machine / Specs

FALC-9020-2A Automatic Multiple Shrink Packaging Machine 規格表

◎ If the model number ends with an "L", it indicates the internal oven length is extended by 300mm, resulting in an overall machine length increase of 300mm.
◎ If the model number ends with an "S", it indicates the outlet side plate is extended by 300mm for enhanced cooling, resulting in an overall machine length increase of 300mm.
